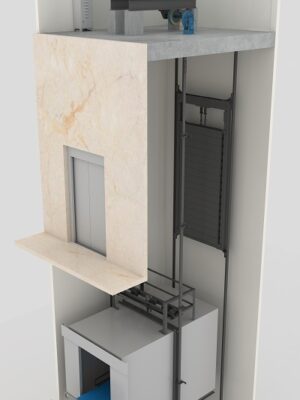

Stretcher Elevator

Stretcher Elevator

Hospital elevators play a vital role in healthcare facilities by ensuring fast and smooth transportation of patients, stretchers, staff, and medical equipment across floors. These lifts are engineered for high performance, offering precise leveling, energy efficiency, and seamless operation, even under continuous use.

Specially designed to carry hospital beds and bulky equipment, these elevators feature wide door openings and spacious cabins for easy movement—especially during emergencies. Their capacity typically ranges between 15 to 30 passengers, with speeds from 0.32 to 2.00 mps, depending on building requirements.

Built with mission-critical reliability in mind, these elevators ensure maximum uptime and smooth functionality to support lifesaving operations. Ideal for hospitals, clinics, and other medical facilities, stretcher elevators are an essential part of a well-equipped healthcare building.

Features

Automatic Rescue Device (ARD) with Voice Enabled Emergency Backup System (VEEBS)

Auto Phase Reversal (APR)

Jerk Free Ride

Infra Red Full Length Doors Sensor With 154 Beams

Motor Thermal Protection Function Etc.

Wide Range Of Doors with Width and Height

All Our Products Are as Per BIS & EN Standard

Emergency Light with battery backup

Door open and Door Close button in cabin

Cross flow Blower

Emergency Alarm with battery backup

Top of the cabin inspection

Emergency break release and Manual Operation

Re-open in HALL Call button operation

Optional Features

Selectable Service Floors Function

2 Hours Fire Rated Doors approved By CBRI-IIT, Roorkey

Braille on push Buttons

Various types of LCD / TFT display (Digital floor position indicator with Up and Down arrow, Seven segments / Digital red Dot Matrix scrolling display in car and landing)

Different type of Flooring (Vitrified tiles / Wooden / PVC Flooring)

Access Control System

Variety of Stainless Steel

Small Vision Glass Doors

Intercom

Size Chart

LOAD
CAR INSIDE
ELEVATOR WELL
ENT

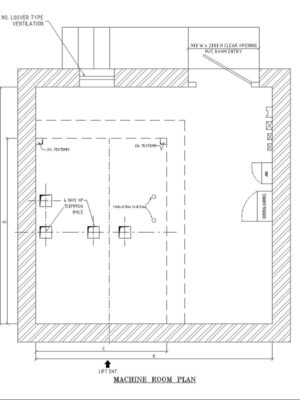

MACHINE ROOM
PERSONS
KG
WIDTH – A
DEPTH – B
WIDTH – C
DEPTH – D
E
WIDTH – K
DEPTH – L
HEIGHT – M
13
884
1000
2200
1800
2750
800
2400
3300
2500
15
1020
1100
2500
1900
3000
900
2500
3500
2500
20
1360
1300
2500
2100
3000
1000
2600
3000
2500
26
1768
1600
2700
2400
3300
1200
3000
3700
2500

TOP VIEW

SIDE VIEW
