MRL Elevator
Machine Room Less (MRL) Elevator
Kayo Elevator’s MRL lifts are designed with efficiency, safety, and sustainability in mind. Our compact gearless machines consume minimal energy while ensuring smooth and secure operation through advanced control systems.
Ideal for low to mid-rise buildings, our MRL lifts use a Permanent Magnet Synchronous (PMS) Gearless Drive installed within the shaft, eliminating the need for a separate machine room. This not only cuts construction costs but also offers greater architectural flexibility.
Our MRL lifts operate at speeds of 1.00–1.05 m/s and accommodate 6 to 20 passengers.

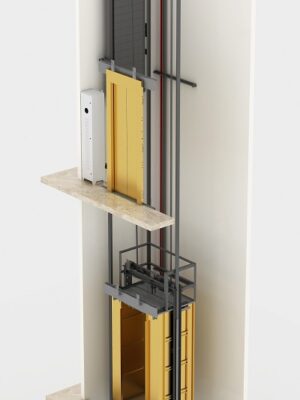

Over Mounted Main Engine (Standard Type)
Main Engine installed into the space between the shaft top car and the elevator shaft wall, control cabinet installed beside the top lifts door, so as to minimize the link between the control cabinet and the main engine for easier overall maintenance.
Traction System with Green Environment Protection
The compact design of the Permanent Magnet Synchronous (PMS) Traction Machine makes it significantly lighter—nearly 50% less than conventional traction machines. Our machine room layout is optimized to match this compact structure, maximizing space efficiency and enhancing overall building utility. This design minimizes the structural impact of the machine room, allowing for better space planning within the building.
Compact Control Cabinet
Our elevators are equipped with a specially designed slim control cabinet tailored for elevator use. This reduces the thickness of the cabinet, effectively saving shaft space and improving the overall space efficiency of the building.
To enhance energy efficiency, we use long-life LED lights inside the elevator car, replacing traditional halogen lamps. Since lighting can account for up to 40% of an elevator’s energy use, this switch helps save up to 80% in energy costs while offering a lifespan nearly ten times longer than halogen bulbs.
Features
Automatic Rescue Device (ARD) with Voice Enabled Emergency Backup System (VEEBS)
Auto Phase Reversal (APR)
Jerk Free Ride
Infra Red Full Length Doors Sensor With 154 Beams
Motor Thermal Protection Function Etc.
Wide Range Of Doors with Width and Height
Simplex Collective – Selective,
Fireman Operation
Cabin Call Cancellation / Erase
Emergency Alarm with battery backup
Emergency break release and Manual Operation
Re-open in HALL Call button operation
Electro-mechanical type landing locks
Cabin Fan and Light Shut Off and Automatic
Double Press Call Cancellation
Overload Device With Voice Announcement
Optional Features
Duplex Collective – Selective, Triplex Functioning Available.
Selectable Service Floors Function
2 Hours Fire Rated Doors approved By CBRI-IIT, Roorkey
Different type of Flooring (Vitrified tiles / Wooden / PVC Flooring)
Access Control System
Full Vision Glass Doors
Different type of Flooring (Vitrified tiles / Wooden / PVC Flooring)
Variety of Stainless Steel & Colored SS finishes for Cabins & Doors, Coloured SS finishes vis a vis Gold / Rose Gold / Black / Copper etc.
Vast range of designer ceilings with laser cut designs, chandeliers and other lighting options.
Intercom
Small Vision Glass Doors
Size Chart
|
LOAD
|
CAR INSIDE
|
ELEVATOR WELL
|
ENT
|
|||
|---|---|---|---|---|---|---|
|
PERSONS
|
KG
|
WIDTH – A
|
DEPTH – B
|
WIDTH – C
|
DEPTH – D
|
E
|
|
4
|
272
|
1000
|
800
|
1600
|
1250
|
700
|
|
5
|
340
|
1000
|
900
|
1600
|
1350
|
700
|
|
6
|
408
|
1000
|
1100
|
1600
|
1550
|
700
|
|
8
|
544
|
1100
|
1300
|
1850
|
1800
|
800
|
|
10
|
680
|
1300
|
1350
|
2150
|
1900
|
900
|
|
13
|
884
|
1500
|
1500
|
2350
|
2100
|
1000
|
|
15
|
1020
|
1600
|
1750
|
2450
|
2350
|
1200
|

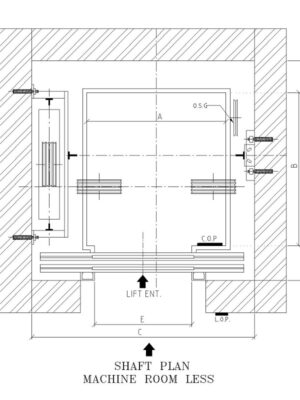

TOP VIEW
SIDE VIEW
