Freight/Goods Elevator
Freight/Goods Elevator
Freight elevators are designed for smooth and efficient vertical transportation of goods in warehouses, factories, and commercial buildings. Built with a strong structure and space-efficient design, these lifts ensure hassle-free movement of heavy loads.
With a capacity ranging from 500 kg to 10,000 kg and speeds up to 0.32 mps, freight lifts offer both durability and performance. Their user-friendly operation and robust build make them ideal for all types of industrial and logistical needs.
Fully Automatic Features
Automatic Rescue Device (ARD) with Voice Enabled Emergency Backup System (VEEBS)
Auto Phase Reversal (APR)
Jerk Free Ride
Infra Red Full Length Doors Sensor With 154 Beams
Motor Thermal Protection Function Etc.
Wide Range Of Doors with Width and Height
As Per BIS & EN Standard
Simplex Collective – Selective,
Fireman Operation
Cabin Call Cancellation / Erase
Voice Announcement System
Emergency Light with battery backup
Various Speed Range (0.3 MPS to 3 MPS)
Door open and Door Close button in cabin
Cross flow Blower Fan
Emergency Alarm with battery backup
Top of the cabin inspection
Emergency break release and Manual Operation
Re-open in HALL Call button operation
Electro-mechanical type landing locks
Cabin Fan and Light Shut Off and Automatic
Overload Device With Voice Announcement
Optional Features
Duplex Collective – Selective, Triplex Functioning Available.
Selectable Service Floors Function
2 Hours Fire Rated Doors approved By CBRI-IIT, Roorkey
Braille on push Buttons
Various types of LCD / TFT display (Digital floor position indicator with Up and Down arrow, Seven segments / Digital red Dot Matrix scrolling display in car and landing)
Access Control System
Variety of Stainless Steel & Colored SS finishes for Cabins & Doors, Coloured SS finishes vis a vis Gold / Rose Gold / Black / Copper etc.
Full Vision Glass Doors
Small Vision Glass Doors
Push & Touch Panel COP / LOP
Vast range of designer ceilings with laser cut designs, chandeliers and other lighting options.
Intercom
Manual Lift Features
Automatic Rescue Device (ARD) with Voice Enabled Emergency Backup System (VEEBS)
Auto Phase Reversal (APR)
Jerk Free Ride
Infra Red Full Length Doors Sensor With 154 Beams
Motor Thermal Protection Function Etc.
Wide Range Of Doors with Width and Height
As Per BIS & EN Standard
Simplex Collective – Selective,
Fireman Operation
Cabin Call Cancellation / Erase
Emergency Light with battery backup
Various Speed Range (0.3 MPS to 3 MPS)
Door open and Door Close button in cabin
Cross flow Blower Fan
Emergency Alarm with battery backup
Top of the cabin inspection
Emergency break release and Manual Operation
Re-open in HALL Call button operation
Electro-mechanical type landing locks
Cabin Fan and Light Shut Off and Automatic
Overload Device With Voice Announcement
Optional Features
Duplex Collective – Selective, Triplex Functioning Available.
Selectable Service Floors Function
2 Hours Fire Rated Doors approved By CBRI-IIT, Roorkey
Braille on push Buttons
Various types of LCD / TFT display (Digital floor position indicator with Up and Down arrow, Seven segments / Digital red Dot Matrix scrolling display in car and landing)
Different type of Flooring (Vitrified tiles / Wooden / PVC Flooring)
Variety of Stainless Steel & Colored SS finishes for Cabins & Doors, Coloured SS finishes vis a vis Gold / Rose Gold / Black / Copper etc.
Full Vision Glass Doors
Small Vision Glass Doors
Push & Touch Panel COP / LOP
Vast range of designer ceilings with laser cut designs, chandeliers and other lighting options.
Intercom
Manual Doors are also available
Size Chart
|
|
CAR INSIDE
|
ELEVATOR WELL
|
ENT
|
MACHINE ROOM
|
|
|||
|---|---|---|---|---|---|---|---|---|
|
KG
|
WIDTH – A
|
DEPTH – B
|
WIDTH – C
|
DEPTH – D
|
E
|
WIDTH – K
|
DEPTH – L
|
|
|
500
|
1500
|
1500
|
2150
|
1800
|
1000
|
2700
|
2400
|
MANUAL
|
|
1000
|
1500
|
1800
|
2200
|
2100
|
1200
|
2800
|
2700
|
|
|
1500
|
1700
|
2000
|
2400
|
2300
|
1500
|
2800
|
2700
|
|
|
2000
|
1700
|
2500
|
2500
|
2800
|
1500
|
2900
|
3400
|
|
|
3000
|
2000
|
3000
|
2800
|
3300
|
1800
|
3400
|
3900
|
|
|
4000
|
2500
|
3000
|
3400
|
3300
|
2000
|
4000
|
3900
|
|
|
5000
|
3000
|
3600
|
3900
|
4000
|
2200
|
4600
|
3900
|
|

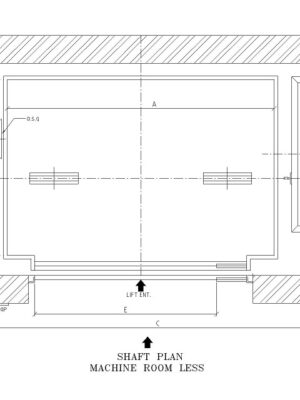

TOP VIEW
SIDE VIEW
